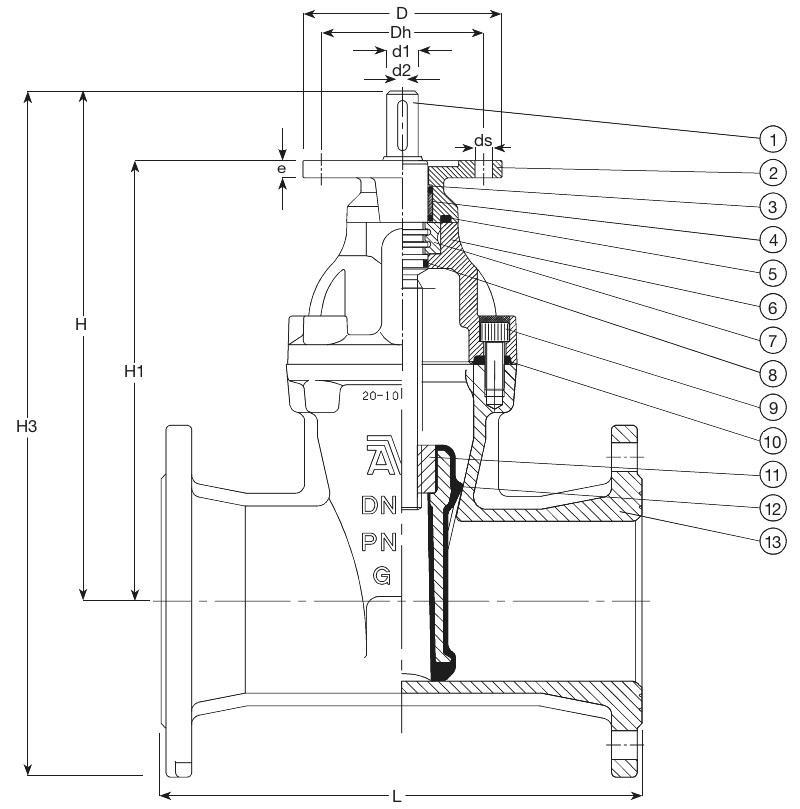

| 1. | Trục van | Thép không gỉ 1.4104 (430F) |
| 2. | Bích kết nối | Gang dẻo GJS-500-7 (GGG-50) |
| 3. | Phớt | Cao su NBR |
| 4. | Bạc lót | Polyamide |
| 5. | Phớt | Cao su NBR |
| 6. | Nắp van | Gang dẻo GJS-500-7 (GGG-50) |
| 7. | Vòng ôm cổ trục | Đồng thau DZR CW602N |
| 8. | Phớt | Cao su EPDM |
| 9. | Bu lông nắp | Thép không gỉ A2, phủ kín nhựa dẻo nóng |
| 10. | Đệm nắp | Cao su EPDM |
| 11. | Chốt đĩa | Đồng CC499K |
| 12. | Đĩa van | Gang dẻo bọc EPDM |
| 13. | Thân van | Gang dẻo GJS-500-7 (GGG-50) |
↗
AVK FLANGED GATE VALVE, SERIES 02/20 - PN10/16. Connection: Flanged; Material: Ductile iron; DN range: DN50 - DN400; PN rating: PN 10/16.
↗
AVK METAL-SEATED GATE VALVE, SERIES 54, FLANGED, PN10/16. Connection: Flanged; Material: Ductile iron; DN range: DN350 - DN1800; PN rating: PN 16.
↗
AVK FLANGED GATE VALVE, SERIES 21/36 - PN10/16. Connection: Flanged; Material: Ductile iron; DN range: DN50 - DN400; PN rating: PN 16.
↗
AVK FLANGED GATE VALVE FOR ACTUATOR / HANDWHEEL GEARBOX, SERIES 15/42 PN10/16. Connection: Flanged; Material: Ductile iron; DN range: DN40 - DN400; PN rating: PN 16.
